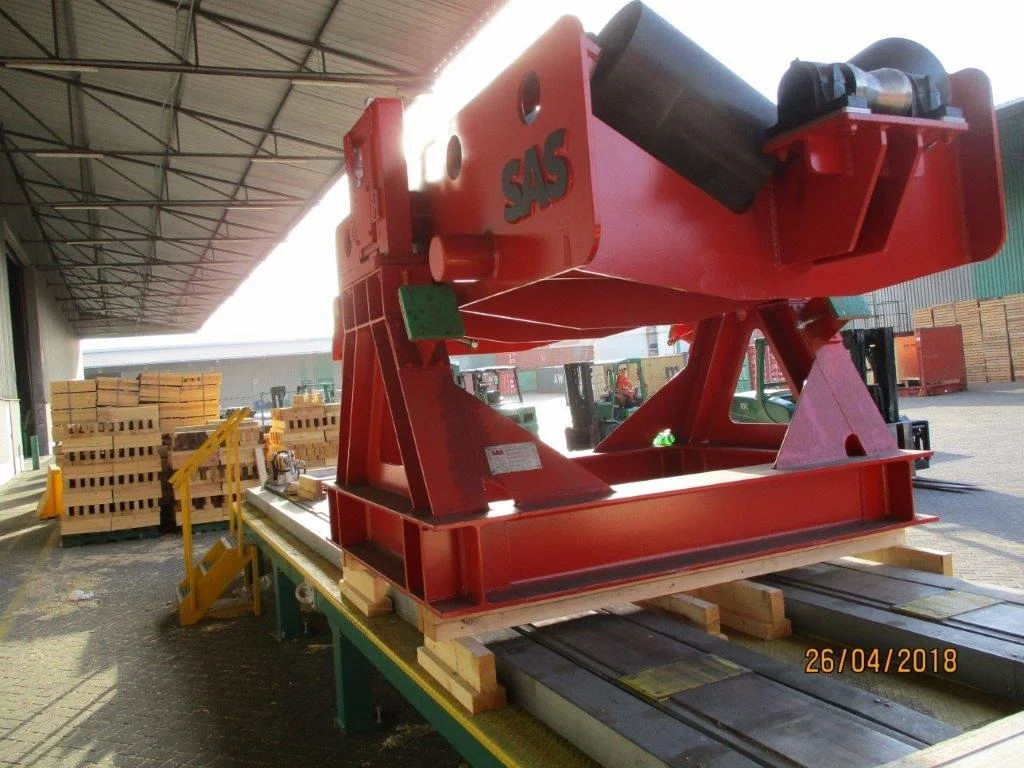

Complete Pipe-lay Spread & 120MT Tensioning System

Specifications

Category:Pipelay equipment

YOM:TBA - unused since new

Class:n/a

Location:Nigeria

Dimensions:-

Price:Please Enquire

Lease:no

Type:Entire Pipelay spread, pipe tensioning system & pipe handling

Make:SAS

Capacity:120 MT

Note:

General Information:
– New and unused complete pipe-lay spread
– 120 MT pipe tensioning system & pipe handling equipment
– Built in 2012 by SAS Holland for a project that was cancelled.
– It has never been installed / used.
– Location: Nigeria, West Africa
– Delivery: Prompt
– Price: We invite firm offers
– Subject unsoldNominal System Performance
– Pipe outer diameter: 4″ to 60”
– Maximum pipe joint weight: 25,000 kgf
– Pipe length: 35 to 40 feet
– Nominal tension capacity, one tensioner: 60,000 kgf @ approx. 25 m/min
(paying-out)
– Nominal tension capacity, two tensioners: 120,000 kgf @ approx. 25
m/min (paying-out)
– Nominal tension capacity, one A&R Winch: 120,000 kgf @ approx. 25
m/min (paying-out)
– Pay in speed: 20 m/minDesign Criteria
– Outside Ambient Temperature
– Minimum: – 10ºC at 90% RH.
– Maximum: + 40ºC at 90% RH.Vessel motions, Pipelay mode
– Pitch: +/- 3%
– Roll: +/- 5%
– Vertical acceleration: +/- 0.12 g.
– Transverse acceleration: +/- 0.1 g.
– Longitudinal acceleration: +/- 0.1 g.Vessel motions, Survival mode
– Pitch : +/- 12
– Roll : +/- 22
– Vertical acceleration : +/- 0.3 g.
– Transverse acceleration : +/- 0.5 g.
– Longitudinal acceleration : +/- 0.3 g.Electrical Power Requirement
– Power supply : 415V / 50 Hz / 3 phase
– Allowable variation voltage : +/- 10%
– Allowable variation frequency : +/- 3%Pipe Tensioner System Components
– Two (2) Tensioners, model TEN60H
– Four (4) Bead Stall supports model BST25
– One (1) Hold Down Device, model HDD
– One (1) A&R Winch, model WIN120AR
– One (1) Electric Power Unit, model EPU1000AC
– One (1) Measurement Sheave, MES120
– One (1) Retractable Sheave, SHE120R
– One (1) Remote Control Console, model RCC2T1WPipe Handling System Components
– One (1) Longitudinal Conveyor Idle, model LC18I
– Nine (9) Longitudinal Conveyors Fixed Driven, model LC18
– Two (2) Longitudinal Conveyors Adjustable Driven, model LC20A
– Two (2) Transfer Rack 5 x 60, model TRR5x60
– One (1) Longitudinal Conveyor Adjustable Idle, model LC20A
– Two (2) Pipe Facing Supports, model PFS25
– Two (2) Line-Up Tools, model LUT25
– One (1) Bead Stall support model BST25
– Three (3) Pipe Ramp Support Rollers (4x2V), model PSR40RAMP
– Two (2) Pipe Stern Support Rollers (6x2V), model PSR60STERN
– Five (5) Stinger Roller Boxes, model SPS60
– One (1) set of Vertical Rollers for last Stinger Roller Box
– One (1) Hydraulic Power Unit, model HPU
– Two (2) Local Control Consoles, model LCC
